5CNMC-EL-S-BLK2

5CNMC-EL-S-BLK2

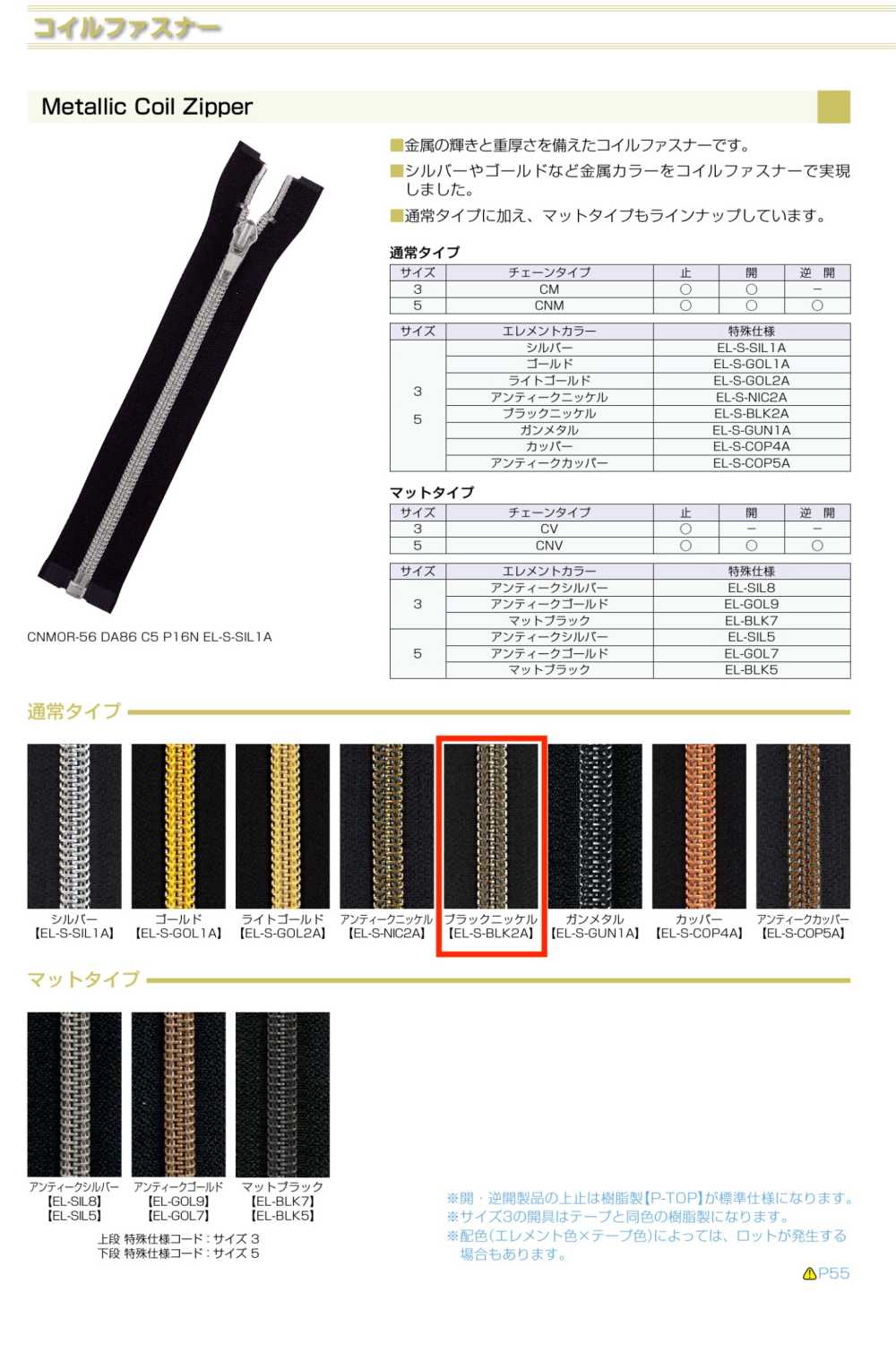

سحاب حلزوني معدني مقاس 5 بلون نيكل أسود بطرف مغلق

ApparelX ID:1110431

لا توجد مراجعات بعد.

هذا السحاب متوفر فقط من خلال المعالجة في مصنع YKK، لذا سيستغرق التسليم حوالي شهر.

سحاب ملفوف بلمعان ووزن المعدن.
تتحقق الألوان المعدنية مثل الفضي والذهبي باستخدام سحاب ملفوف.
إلى جانب النوع القياسي، يتوفر أيضًا نوع مطفي.

العلامة التجارية / الشركة المصنّعة:YKK

المورّد:Okura Shoji Co., Ltd.

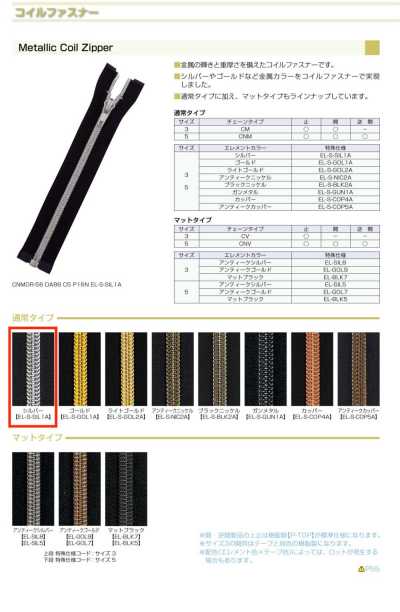

Metallic Coil Zipper

المقاس:يرجى الاختيار اللون:يرجى الاختيار رأس السحاب:يرجى الاختيار

حالة المخزون(*):يظهر بعد تسجيل الحساب

لكل قطعة(P)

الكمية

الاستفسار عن هذا المنتج

المقاس

يرجى اختيار المقاس:

12cm

13cm

14cm

15cm

16cm

17cm

18cm

19cm

20cm

21cm

22cm

23cm

24cm

25cm

26cm

27cm

28cm

29cm

30cm

31cm

32cm

33cm

34cm

35cm

36cm

37cm

38cm

39cm

40cm

41cm

42cm

43cm

44cm

45cm

46cm

47cm

48cm

49cm

50cm

51cm

52cm

53cm

54cm

55cm

56cm

57cm

58cm

59cm

60cm

61cm

62cm

63cm

64cm

65cm

66cm

67cm

68cm

69cm

70cm

71cm

72cm

73cm

74cm

75cm

76cm

77cm

78cm

79cm

80cm

اللون

يرجى اختيار اللون:

002

004

009

010

011

013

016

022

026

029

030

031

032

033

034

039

042

044

045

048

052

053

054

056

057

058

067

069

070

071

074

075

076

080

085

086

088

089

093

094

095

096

099

101

106

108

109

112

121

122

123

124

129

132

133

134

135

138

141

153

154

155

156

157

158

168

169

178

180

181

182

184

186

187

190

191

194

195

208

209

211

214

219

221

222

223

226

227

231

233

235

236

242

245

247

249

254

257

264

266

268

273

274

281

284

289

291

293

300

301

306

316

325

330

334

336

340

344

350

355

361

366

367

368

371

384

386

395

398

405

409

501

502

503

504

505

506

508

509

511

512

513

515

516

518

519

520

522

523

525

527

528

530

532

533

535

537

538

540

541

542

543

545

546

547

548

550

551

552

553

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

801

806

807

808

809

810

811

812

813

817

818

819

821

822

824

825

828

829

831

832

840

841

844

846

848

850

851

853

854

856

859

860

861

862

864

865

867

874

878

879

882

883

884

886

890

892

893

895

896

898

902

906

908

911

912

913

914

915

916

917

918

919

960

979

رأس السحاب

يرجى اختيار رأس السحاب: (ملاحظة: الألوان في الصور ليست الألوان الفعلية، ويعتمد اللون الفعلي عادةً على اللون الذي تختاره.)

CA8

For Later Attachment Of Pull Tab

DA86

DA Standard Slider

DA8BL9

Ball Chain Pull

DA8BT2

DA8CRS

DA8DBL

DA8DC

For Later Attachment Of Pull Tab

DA8DDH

DA8DHH

DA8DHR9

DA8DR7

DA8DRB

DA8L

DA8LH

DA8LH1

DA8MDH

DA8MSL1

DA8P5

DA8RL

DA8SP

DA8UR

DA8UR2

DA8W

DA9

DA9DHR

DA9DR7

DA9LH

DA9LH1

DA9MSL

DF9L

DF9W

DFBS

DFCA

DFCAB

DFDBL

DFDC

For Later Attachment Of Pull Tab

DFDHH1

DFDHR1

DFDOH

DFDR7

DFDRB7

DFDRL

DFK-A1/B1

DFL

DFL1

DFLS1

DFOR

DFSP

DFUR

DFW

DFW1

DK1B

DLW

DS7YG

For Reversible Use

DWL

Double-sided Pull Tab

DWW

Double-sided Pull Tab

DXDRL

Double-sided Pull Tab

DXL

Double-sided Pull Tab

NA9

NA9LH2

TFL

TFW

ZA1

For Later Attachment Of Pull Tab

For Post-attachment Puller

ملاحظة الطلب

أضف ملاحظة للمورّد أو للرجوع إليها لاحقًا:

أدخل ملاحظة

وصف المنتج

هذا السحاب متوفر فقط من خلال المعالجة في مصنع YKK، لذا سيستغرق التسليم حوالي شهر.

الفئة	Zipper
Subcategory	Coil Zipper
Gender	Unisex
Usage	General Purpose
Product Category	Closed
Teeth Size	Size 5
Style	For Outerwear/blousons/coats, For Jackets/Suits
المجموعة	Metallic Coil Zipper


الخامة	راتنج بوليستر UP
العلامة التجارية / الشركة المصنّعة	YKK
التوصيل إلى صندوق البريد	ممكن
تاريخ الإدراج في ApparelX	26‏/6‏/2026

مشاركة هذا المنتج

الأسئلة الشائعة

الأسئلة الشائعة حول هذا المنتج:

Will the elements of the coil zipper be removed before delivery?

If you select the delivery-priority (processing) option, the product will be delivered with the elements attached.
Please note that in the case of factory processing, the product will be delivered without the elements.

If you would like the elements removed for delivery-priority (processing), please write "Please remove the elements" in the order memo field.
If this is not specified, the product will be delivered with the elements attached.

Can DA2E be selected for an 8-size EXCELLA two way separator zipper?

For an 8-size EXCELLA two-way separating zipper, there is no DA2E specification for the lower slider, but it can be arranged if the upper slider is DA2E and the lower slider is DA1, etc.

Do you handle pull tabs for the Decorative Series, such as ZY02 and ZY13?

It is possible to arrange pull tabs for the decorative series. When placing your zipper order on the ApparelX product page, please write the desired pull tab in the remarks field. Pull tabs for the decorative series are basically factory processing.

Can you arrange an aluminum No. 4 metal zipper?

We’re sorry, but this item has been discontinued as of March 2022.
If you choose a similar YZiP aluminum type, it can be arranged in size 4.
4YANC YZiP® zipper (aluminum) size 4, closed-end
4YANOR YZiP® zipper (aluminum) size 4, open-end

Do you carry ball-pull zippers?

There is no product called a ball zipper; the slider called DABL is the ball-type slider.
Please select slider "DABL" from the product page for the zipper you want and place your order.

Do you have tape color swatches?

Tape color card sample card is available for sale.

How should I specify the cord for the slider plating color?

cord	Specification
E	Paint
P	Premium nickel plating
N	Nickel plating
C5	Silver plating
C6	Matte silver plating
H3	Antique silver plating
V3	Black silver plating
X6	Matte black
Q	Real gold plating
OU	Premium gold plating
O	Gold plating
KQ	Clear gold plating
I	Antique gold plating

Please enter your desired color in alphabet letters in the remarks field, according to the table above, such as "I would like P plating for the slider color".

Is it correct that 4.5 is written on the back of the size 3 YZiP slider GSBN8?

Regarding the GSBN8 slider for 3-size YZiP, the 3-size item is marked 4.5.
Please rest assured that it is indeed the 3-size item.

Can you arrange YKK's Old American zipper?

Available only through factory processing. Lead time is approximately 3 to 4 weeks.
If you contact us through the support page with the details below, we will confirm the unit price and lead time.

･Zipper product category [closed-end/open-end/two way separator (for two-way separators and similar styles that can have two sliders, the element color is limited to C/# Gold only.)]
･Size
･Length
･Quantity
･Element color
･Tape color
･Slider
･Top stop
･Bottom stop
･Brand name to be used

Do you carry open-end concealed zippers?

We apologize, but open-type concealed zippers were discontinued in all sizes as of March 2022, so
this item cannot be arranged.

Do you handle zippers longer than 100 cm or shorter than 20 cm?

Can be arranged. Please choose the closest length and enter the desired length in the remarks field.
*Price varies depending on length.

Is it possible to arrange a zipper slider without the YKK EXCELLA logo?

Yes, it is possible. In that case, it will be factory processing only. If you note it in the memo field or remarks field when placing your order, we will arrange it for you.

I would like the zipper separately without the top stop. Is that possible to order?

Yes, that is possible. If you specify it in the remarks field when placing your order, we will arrange it for you. The unit price will be provided separately.

Can you arrange a zipper for reverse use?

Yes, we can. If you write it in the remarks field or memo field when placing your order, we will arrange the zipper for reverse use.

I’d like a left-insertion zipper. Is it possible to order one?

Yes, that is possible. For open-end zippers, the product number suffix is OR for right-side insertion and OL for left-side insertion. For two way separator zippers, the product number suffix is MR for right-side insertion and ML for left-side insertion.
At present, on ApparelX we only have product pages for right-side insertion items, so please place your order from the right-side insertion product page.
If you note in the remarks field at the time of ordering that you would like to change to left-side insertion, we will arrange it for you. We will contact you separately regarding the unit price.

Is it possible to order a length that is not listed on the product page?

Yes, it is possible. When placing your order, please select the length closest to the length you want, and if you clearly specify the desired length in the remarks field, we will change it to that length and arrange it for you. (Delivery may take some time.)

Can I order a zipper in 0.5 cm increments? If so, how should I place the order?

Yes, it is possible. Please indicate the desired length in the order notes field, and we will arrange it to that length.
Please also place your order using the length rounded up to the nearest 0.5 cm. (Example: If you would like to request 20.5 cm, select 21 cm and clearly write "20.5 cm requested" in the notes field.)

I want head-to-head and bottom-to-bottom zippers. How should I place an order?

Please order a closed-end zipper and specify in the remarks field whether you want head-to-head or tail-to-tail.
We will check the unit price and delivery date and contact you by email.

Specifications for head-to-head and tail-to-tail zippers
〈Metal zipper〉 Size 5 / Size 7 / Size 8 / Size 10
〈Vislon〉 Size 3 / Size 5 / Size 8

Can I order a zipper in a color not listed on the product page? If so, how should I place the order?

Yes, that is possible. Please clearly write your desired color number in the remarks field when placing your order, and we will arrange it in that color.
* Colors not listed on the product page are often out of stock, and if the color is out of stock, it will be arranged through factory processing.

What color is the slider on the nickel silver metal zipper?

It is nickel-colored. Nickel silver has a slight yellow tint like a 500-yen coin, but nickel color is a whitish, bright silver color.

Can the slider color be changed?

Yes, it is possible. As a general rule, if nothing is specified, metal zippers come with sliders in the same color as the element, and other zippers come with sliders in the same color as the tape color.
(Sliders with an attached pull tab are available in metal color only.)
The slider color shown on the product page is for reference, so the color will vary depending on the zipper you order.
If you would like to change the slider color, please note it in the order memo.

Which slider should I choose if I want to attach a pull tab later?

Please choose a CA, ZA, ZF, or other slider that can be fitted with a pull tab afterward.
The difference between CA and ZA/ZF is whether a pull tab can be attached from the base or not.
Pull tabs are sold by various manufacturers, but the specifications determine whether they can be attached to CA or ZA, so please check carefully.
The color options for retrofit sliders are limited to metal colors only.

Is it possible to order only the slider for a YKK zipper?

Basically, we are unable to accept orders for sliders only, but it is possible to arrange them if they are ordered together with a chain zipper or used for a zipper previously purchased from APPARELX.
In that case, please contact us via the contact form on the Support Page with the type and size of the YKK zipper you purchased, the slider color, the slider product number, and the quantity. We will reply after confirmation.

I would like to order a two way separator zipper with different sliders on the top and bottom. How should I do that?

If you note the desired upper and lower sliders in the zipper memo field when placing your order, we will change them to the sliders you want and arrange the order accordingly.

Is it possible to obtain the comprehensive zipper catalog "FASTENING Senka"?

The booklet-type FASTENING SENKA has now been discontinued. We apologize for the inconvenience, but it can be downloaded from YKK's website, so please check there.
https://www.ykkfastening.com/japan/catalog/

How should I choose between sliders with locks and without locks?

You can determine this from the second letter of the slider product number.
“A” = automatic lock (the slider locks automatically when you let go of the pull tab, and unlocks when you pull the pull tab)
“F” = non-lock (a slider with no locking function, regardless of the position of the pull tab on the body)
“N” = notch lock (a notch is attached to the shoulder of the body, and it locks when opened by bringing the chain against the shoulder)
“W” = reversible (pull tabs are attached to the front and back, so it can be opened from either side)
“U” = reversible (an automatic slider with one pull tab that can move along the rotating rail and can be opened and closed from either the front or back.)

I want to place an order for a color or slider that is not listed on the product page. What should I do?

If you enter your preferred color and slider in the zipper memo field when placing your order, we will make the change and arrange it for you.

I selected Lead Time Priority (custom production), but what does custom length processing from longer stock mean?

As for zipper inventory, products other than 2CHC concealed zippers are not stocked in the exact length you specify. For made-to-order production, we can process a longer zipper to make it, which shortens the delivery time but increases the unit price. If you want it processed from longer stock and need it right away, please select "Delivery priority (higher unit price)."

The article below is about coil zippers, but it also explains zipper inventory.
https://apparelx-news.jp/apparel-material/zipper/coil-fastener

Can you arrange only the hardware, such as the top stops and bottom stops, for a zipper?

We generally do not accept orders for hardware only, but if you arrange the zipper chain, we can arrange it for you.

How can I order a zipper without top or bottom stops?

We also sell zipper chain, so please place your order for the chain.

ملاحظات عامة

يرجى الاطلاع على الملاحظات العامة التالية الخاصة بالمنتجات على هذا الموقع:

السحابات | الدفع عند إعطاء الأولوية لموعد التسليم

قد نقصّر سحابًا أطول إلى الطول الذي تحتاجه، وفي هذه الحالة قد يتغير سعر الوحدة.

*** للدفع بالتحويل البنكي، يرجى التحويل بعد تأكيد سعر الوحدة.

*** للدفع ببطاقة الائتمان، يرجى سداد مبلغ إضافي بعد تأكيد سعر الوحدة.

حول صور المنتجات

لا يمكن للشاشات إظهار الملمس أو اللمعان الفعلي للأقمشة وغيرها من المنتجات، وقد تبدو الألوان مختلفة قليلًا حسب شاشتك. نحن نعمل للوصول إلى عالم لا تكون فيه حاجة إلى كتالوجات العينات الفعلية، لكننا ننصحك عند طلب كميات للإنتاج الكبير بشراء كتالوج العينات للاطلاع على المنتج الفعلي.

الدفع عند طلب رول قماش كامل

قد يختلف الطول الفعلي لرول القماش الكامل، وسنُبلغك بالطول النهائي فور تأكيده.

*** للدفع بالتحويل البنكي، يرجى التحويل بعد تأكيد الطول النهائي.

*** للدفع ببطاقة الائتمان، سنردّ الفرق أو نطلب دفعة إضافية بعد تأكيد الطول النهائي.

هل تحتاج إلى مساعدة؟ يُرجى زيارة صفحة الدعم
